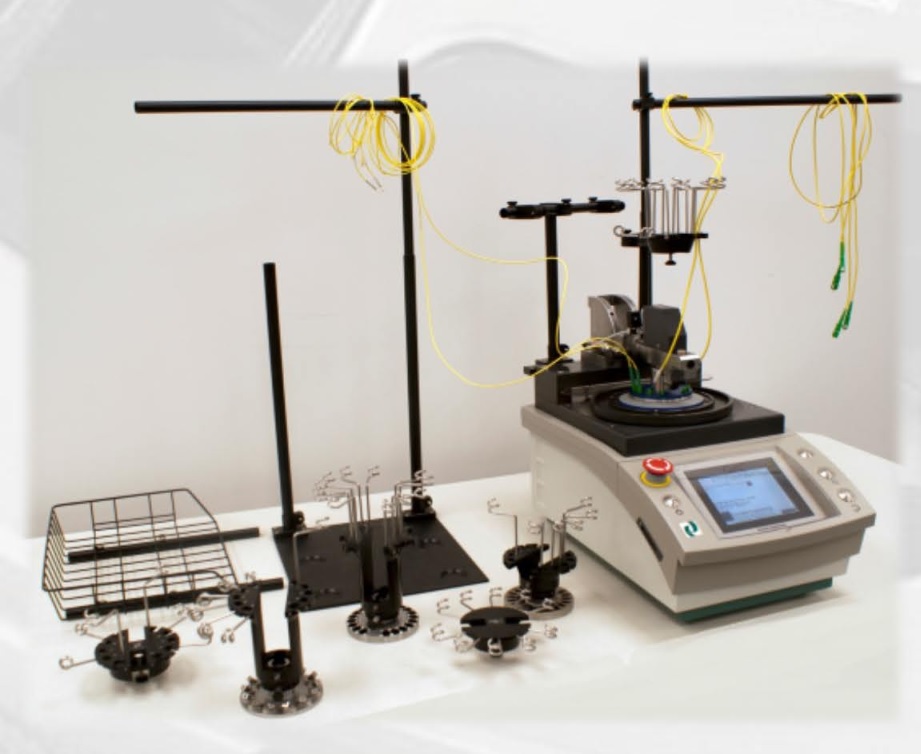

Domaille HDC-4000 机械式光纤研磨机 --- 此款设备已经停产，目前可提供二手机及维修服务
精密，高效的光纤研磨机，用于各种光纤连接器，MTP/MPO产品的研磨
能存储四步研磨工艺
自由调节压力，转速，时间时间，确保成品的一致性
实时显示工作压力及转速
尤其适合加工多芯塑料插针产品
多规格高精度研磨夹具可供选择并可定做
-
研磨机规格书
Specification
APM-HDC-5300
APM-HDC-4000
Control
PC Based
Analog Based
Stored Processes
100+
One
Automated Compensation for number of connectors
Yes
No
Single Mode Connector Polish
Yes
Yes
Multi-Mode Connector Polish
Yes
Yes
Recommended Run
Short Run
Continuous
Fixture Design
Round
Round
Operator Prompts
Yes
No
Flash Card
Yes
No
Password Security
Yes
No
Power Requirements
2 amps
5 amp
100-240 VAC
120 VAC
50/60 Hz
50/60 Hz
Speed Range
20 – 200 rpm
20 – 210 rpm
Pressure Range
0 – 10 lbs (0 – 4.54 kg),
0 – 10 lbs (0 – 4.54 kg)
Pressure Increment
.01 lbs (.01 kg)
.01 lbs (.01 kg)
Pressure Feedback
Yes
Yes
Automated Compensation for number of connectors
Yes
No
Pad/Film Size Required
5 inches(127 mm)
5 inches(127 mm)
CE Rating
Yes
No
Air Requirements
80-120 psi
80-100 psi
Machine Weight
70 lbs (32 kg)
70 lbs (32 kg)
Shipping Weight
102 lbs(46 kg)
90 lbs(41 kg)
Domaille fixtures
PN
Description
备注
PF-MT-EZ8-12
MT 8º 12-Port Polishing Fixture
MT 12头APC夹具
PF-MT-EZ-12
MT 12-Port Polishing Fixture
MT 12头PC 夹具
研磨垫，玻璃垫
-
